IP Communication System

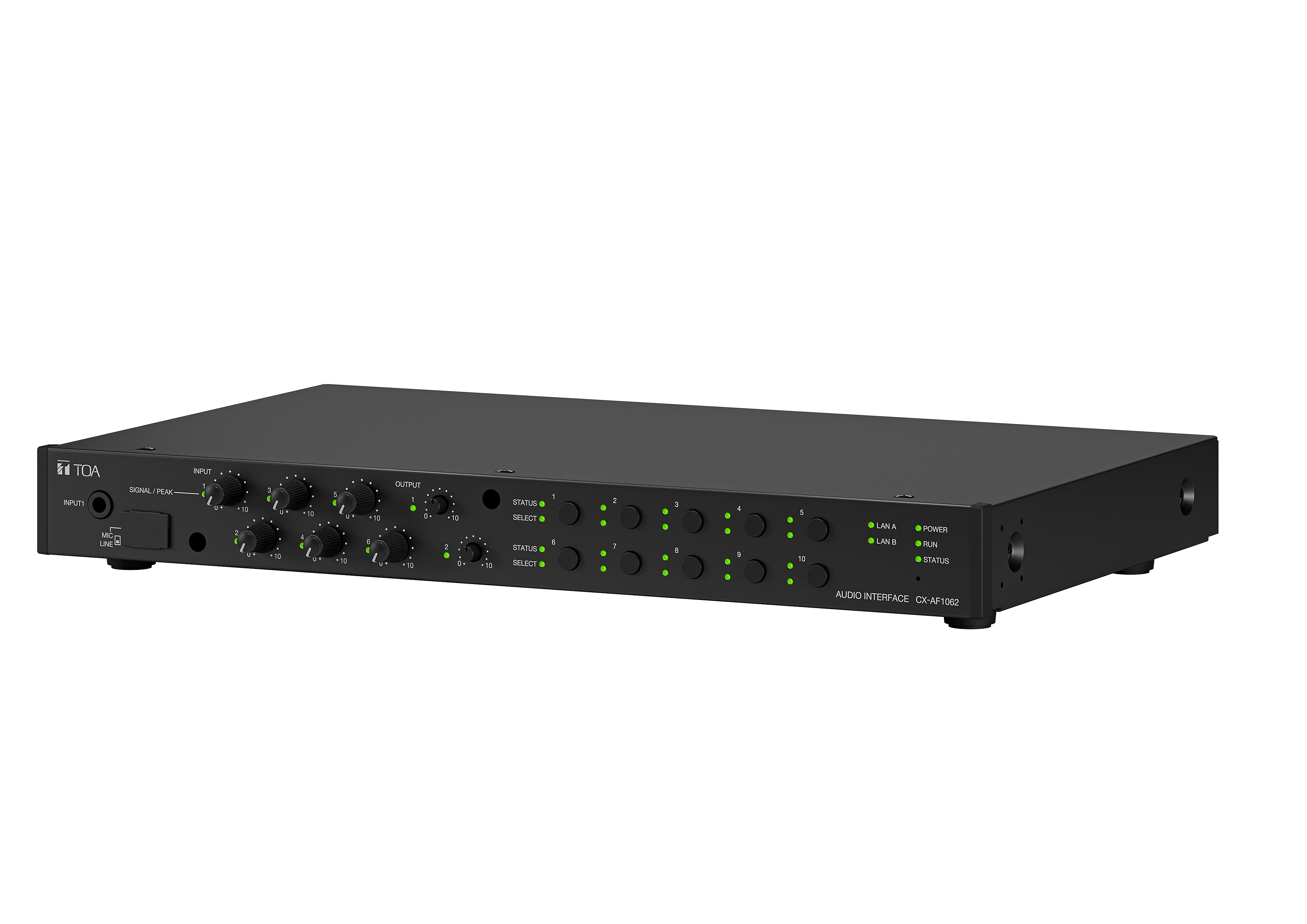

CX-AF1062 Audio Interface

The CX-AF1062 is an Audio interface designed for the CX-1000 series IP communication system that features decentralized distribution configuration. By simply connecting to a network (LAN or WAN), it is possible to make audio announcements from the microphone or audio source devices connected to this unit to the intercom stations or amplifier units. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be performed. It is equipped with 6 analog audio inputs and 2 analog audio outputs. You can adjust the volume for each audio input/output channel using the front panel-mounted volume knob or by software. In addition, the sound quality for each audio input/output channel can also be ad justed by software. Announcements and various functions can be started or stopped using the front panelmounted direct keys.

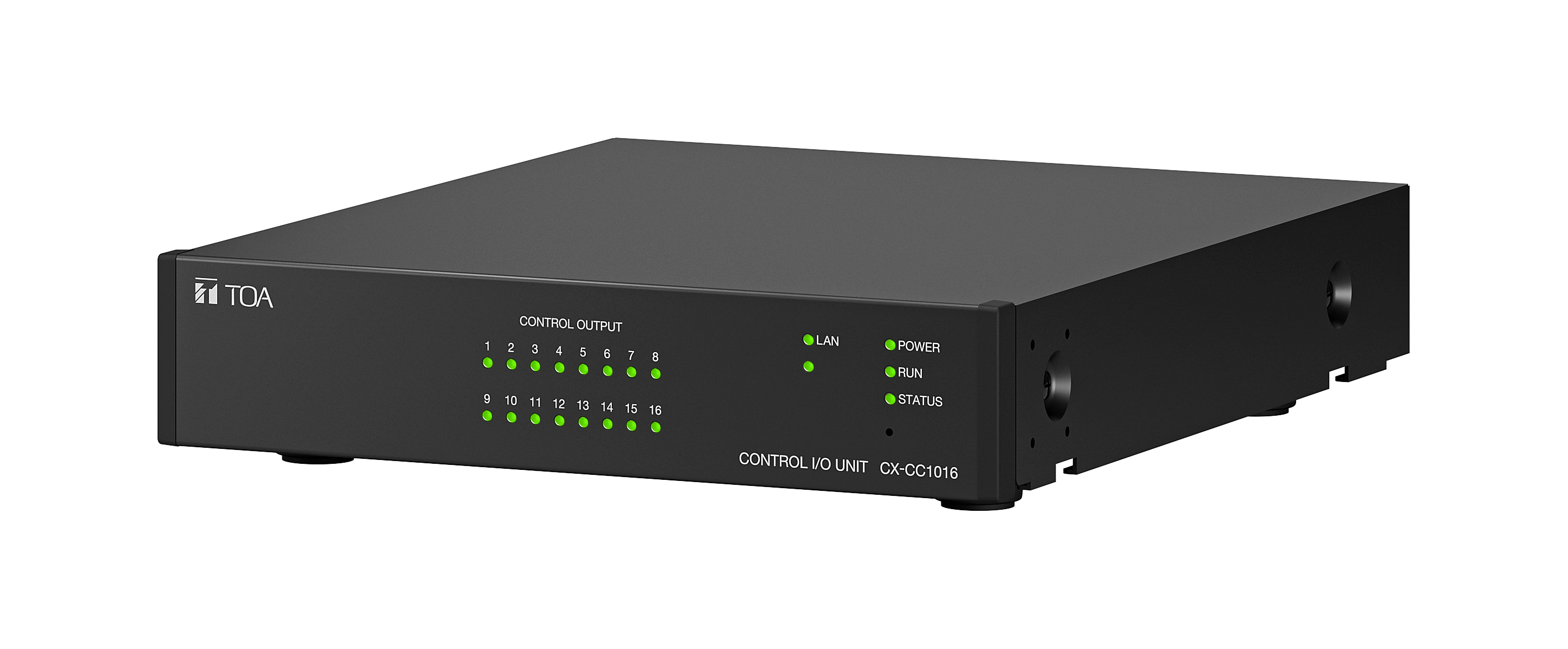

CX-CC1016 Control I/O Unit

The CX-CC1016 is a Control input/output unit having 16 control inputs and 16 control outputs designed for the CX-1000 series IP Communication system. By connecting this unit to a network (LAN or WAN), you can control external devices connected to the units in the configured CX-1000 system, enable various types of calls, activate broadcasts, and set other functions as needed. The output status can be confirmed with the front panel-mounted indicators.

CX-CL1550 Call Station

The CX-CL1550 is a Call station designed for the CX-1000 series IP communication system.

By connecting this station to a network (LAN or WAN), hands-free voice conversations can be made using this station or other intercom stations. It is also possible to receive broadcasts made by other CX stations, audio interfaces, and amplifier units. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). The CX-CL 1550 supports the SIP protocol, which allows conversations with general-purpose SIP phones.

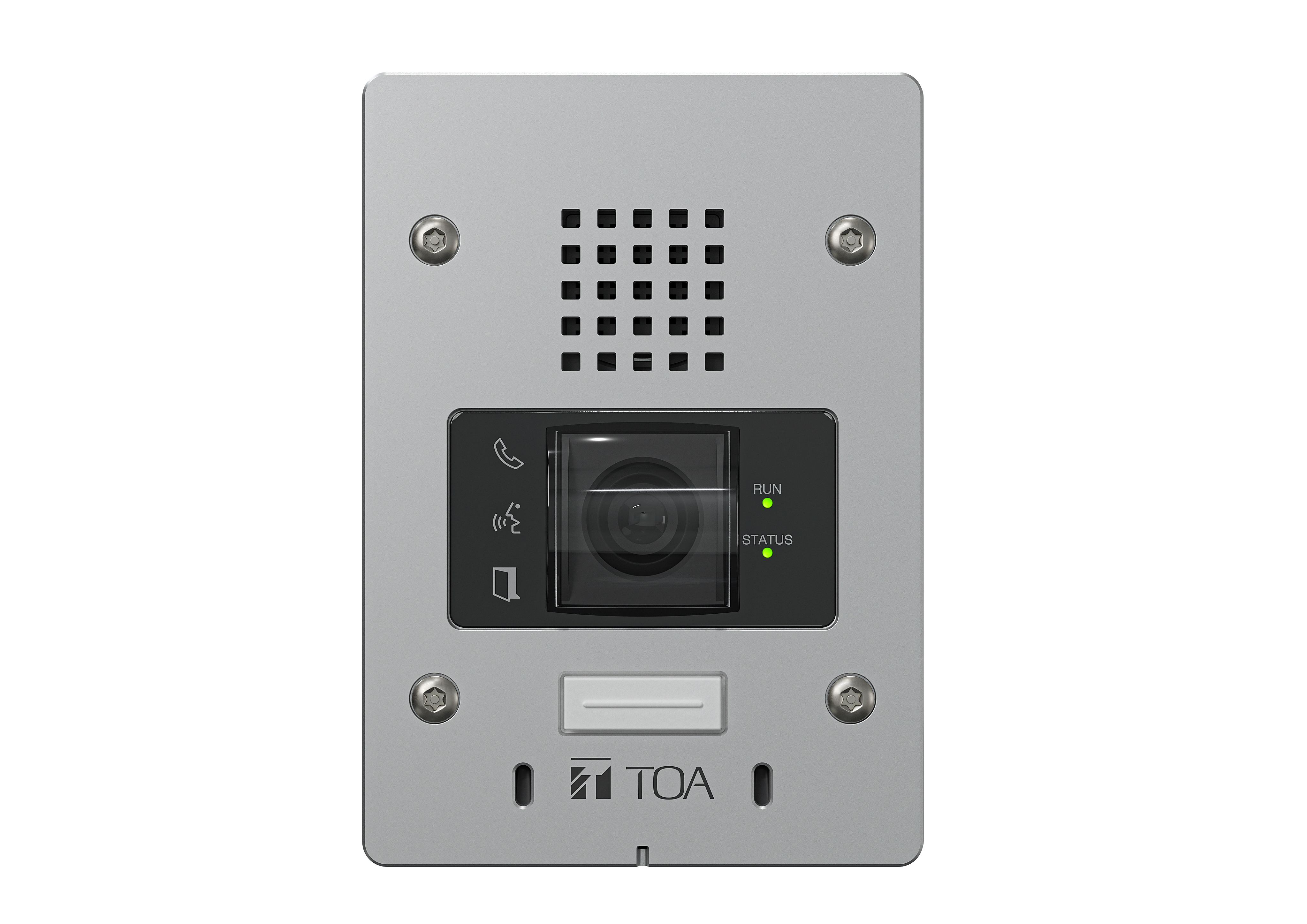

CX-CL1750 Video Call Station

The CX-CL1750 is a Video call station designed for the CX-1000 series IP communication system.

By connecting this station to a network ( LAN or WAN), hands-free voice conversations can be made using this station or other intercom stations. It is also ossible to receive broadcasts made by other CX stations,audio interfaces, and amplifier units. It is equippe J with a camera that enables video conversations with the CX-1000 series Video multifunctional station. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). The CX-CL1750 supports the SIP protocol, which allows conversations with general-purpose SIP phones.

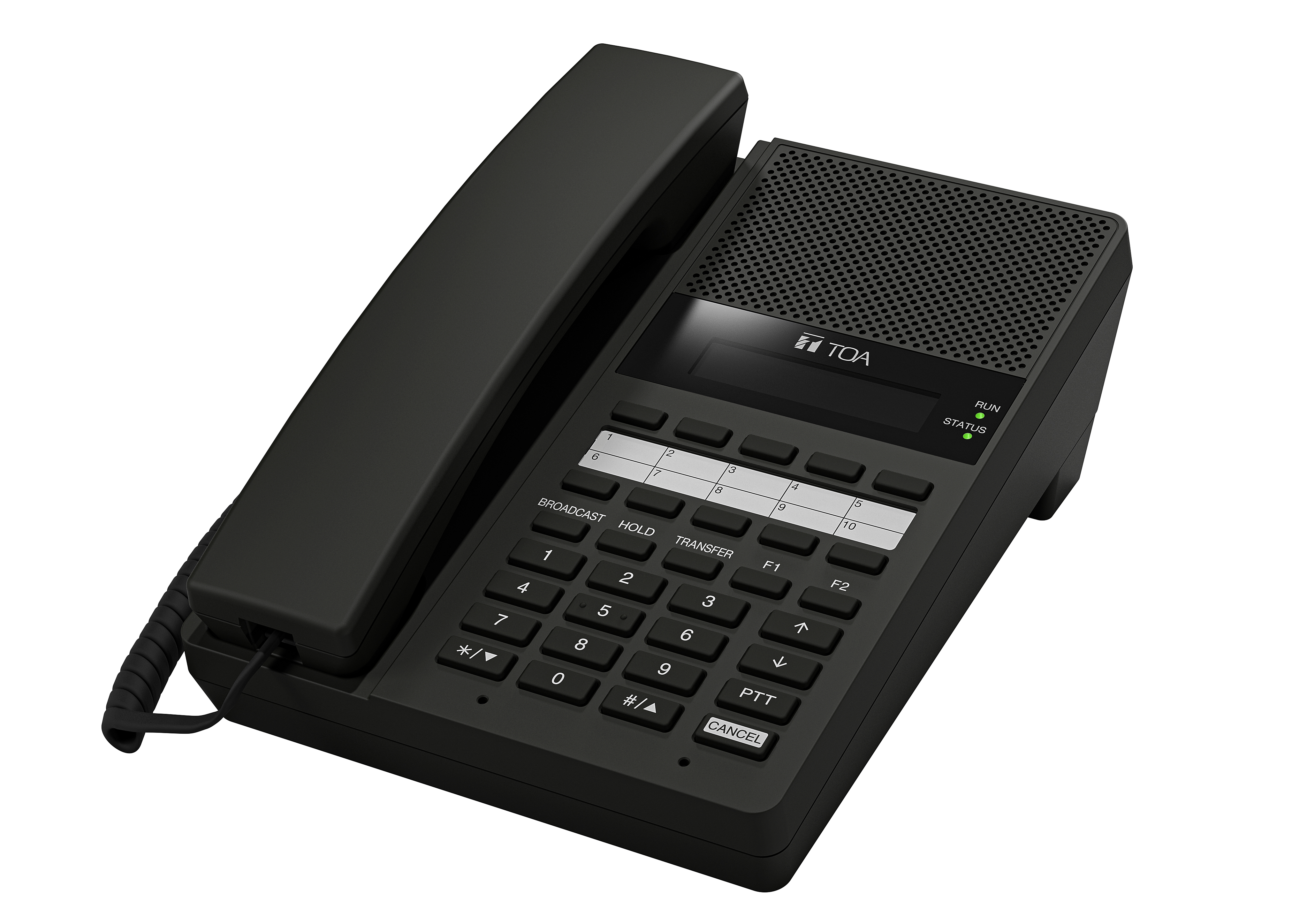

CX-OP1500 Operation Station

The CX-OP1500 is an Operation station designed for the CX-1000 series IP communication system.

By connecting this station to a network ( LAN or WAN), hands-free and handset voice conversations can be made using this station or other intercom stations. You can make broadcasts not only to the same model stations and other intercom stations, but also to the Audio interface and amplifier units. It is equipped with an LCD, a one-touch dialing function, a headset terminal, and an external speaker terminal. Power can be supplied from a PoE-compatible switching hub ( in this case, an optional AC adapter is not required).

The CX-OP1500 supports the SIP protocol, which allows conversations with general-purpose SIP phones. The supplied Angle adjustment stand allows you to adjust the angle when it is placed on a desk.

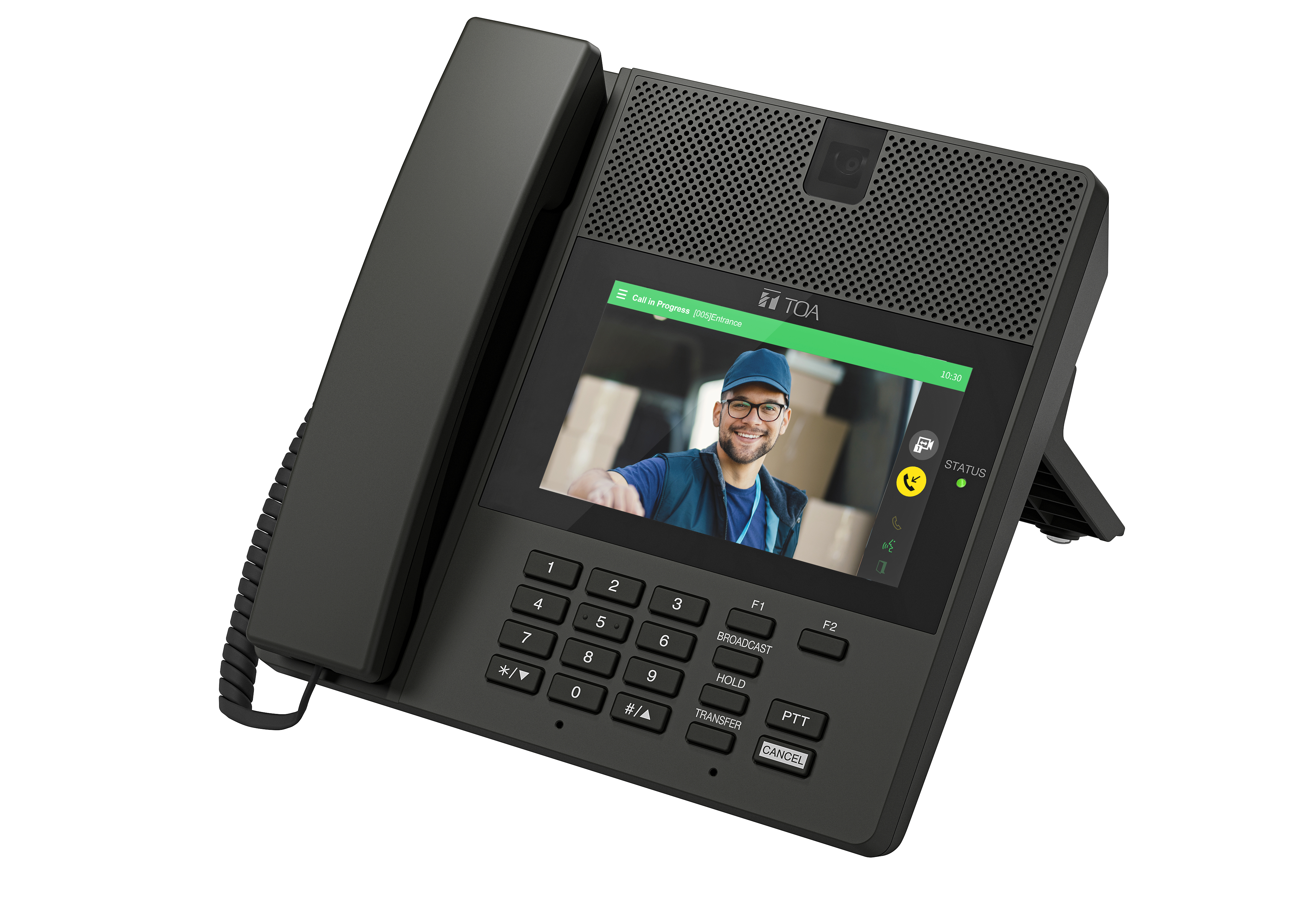

CX-OP1700 Video Operation Station

The CX-OP1700 is a Video operation station designed for the CX-1000 series IP communication system.

By connecting this station to a network ( LAN or WAN l, hands-free and handset video conversations and voice conversations can be made using this station or other intercom stations. You can make broadcasts not only

to the same model stations and other intercom stations, but also to the Audio interface and amplifier units.

It is equipped with a touch screen LCD and a camera, allowing the intuitive operation and video conversations. In addition, other features include a one-touch dialing function, and a headset terminal and an external speaker terminal. Power can be supplied from a PoE-compatible switching hub ( in this case, an optional AC adapter is not required l. The CX-OP1700 supports the SIP protocol, which allows conversations with general-purpose

SIP phones. Images from the general-purpose IP cameras can be displayed. The supplied Angle adjustment stand allows you to adjust the angle when it is placed on a desk.

Note: We do not guarantee the operations of all IP cameras.

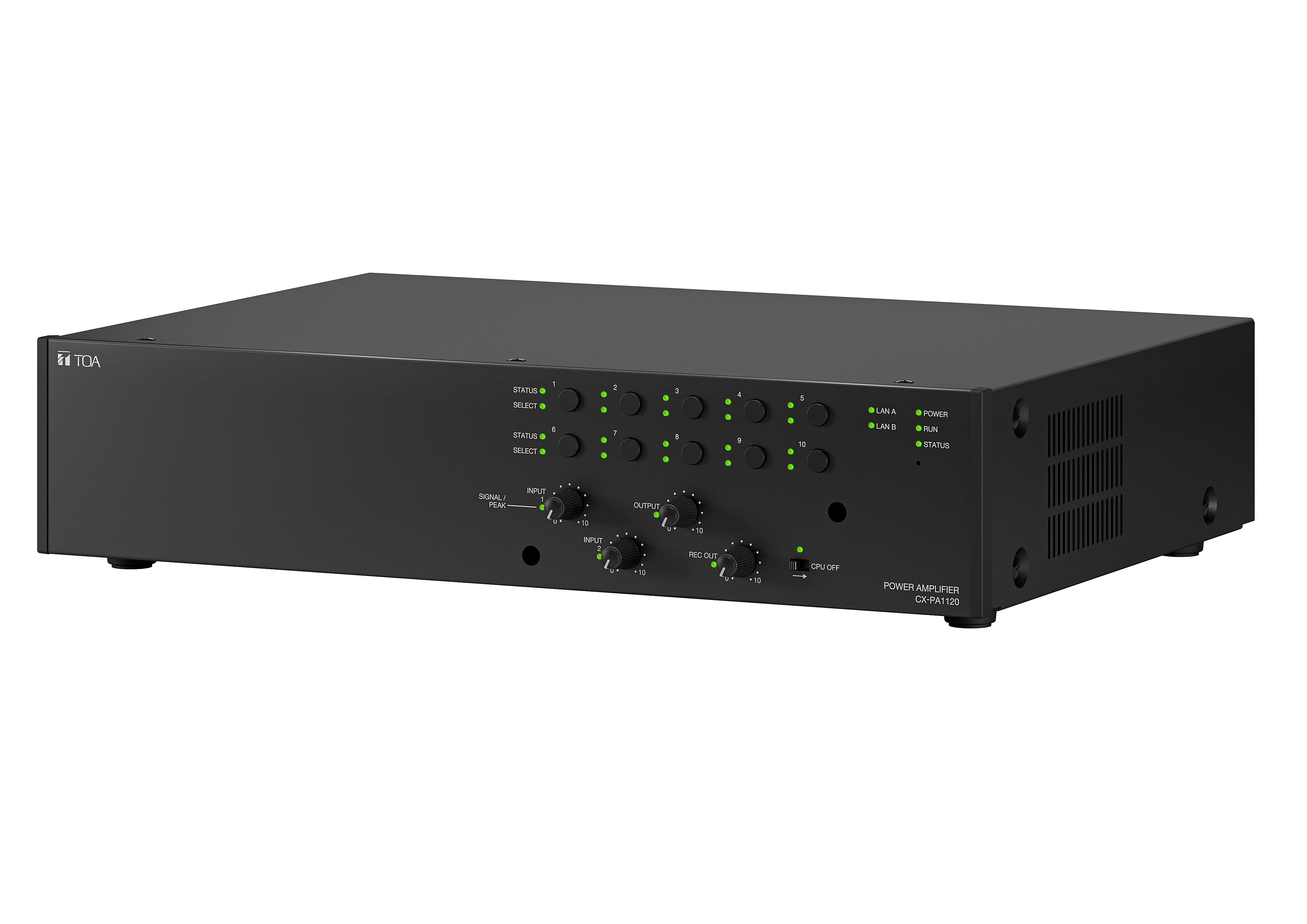

CX-PA1120 Power Amplifier

The CX-PA1120 is a 120 W amplifier unit equipped with a built-in 10-zone speaker selector, designed for the CX-1000 series IP communication system. It allows audio broadcasts from each intercom station and audio interface to each speaker zone. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be made. It is equipped with 2 analog inputs, 1 recording output, and 10-zone speaker output which is individually controllable. The input and output volumes can be ad justed using the front panel-mounted volume knobs or by software. The sound quality of the input and output can also be adjusted by software. The CX-PA1120 is equipped with 24 V DC emergency cutoff input function, allowing it to be linked with emergency evacuation broadcast equipment.

It features a built-in ANC function that automatically adjusts the output volume according to the ambient noise when an ANC sensor microphone is connected. Even if the connection to the System manager is disconnected, emergency all-zone broadcasts can be made using the unit's audio input and output. Broadcasts and various functions can be started and stopped using the front panel-mounted direct keys.

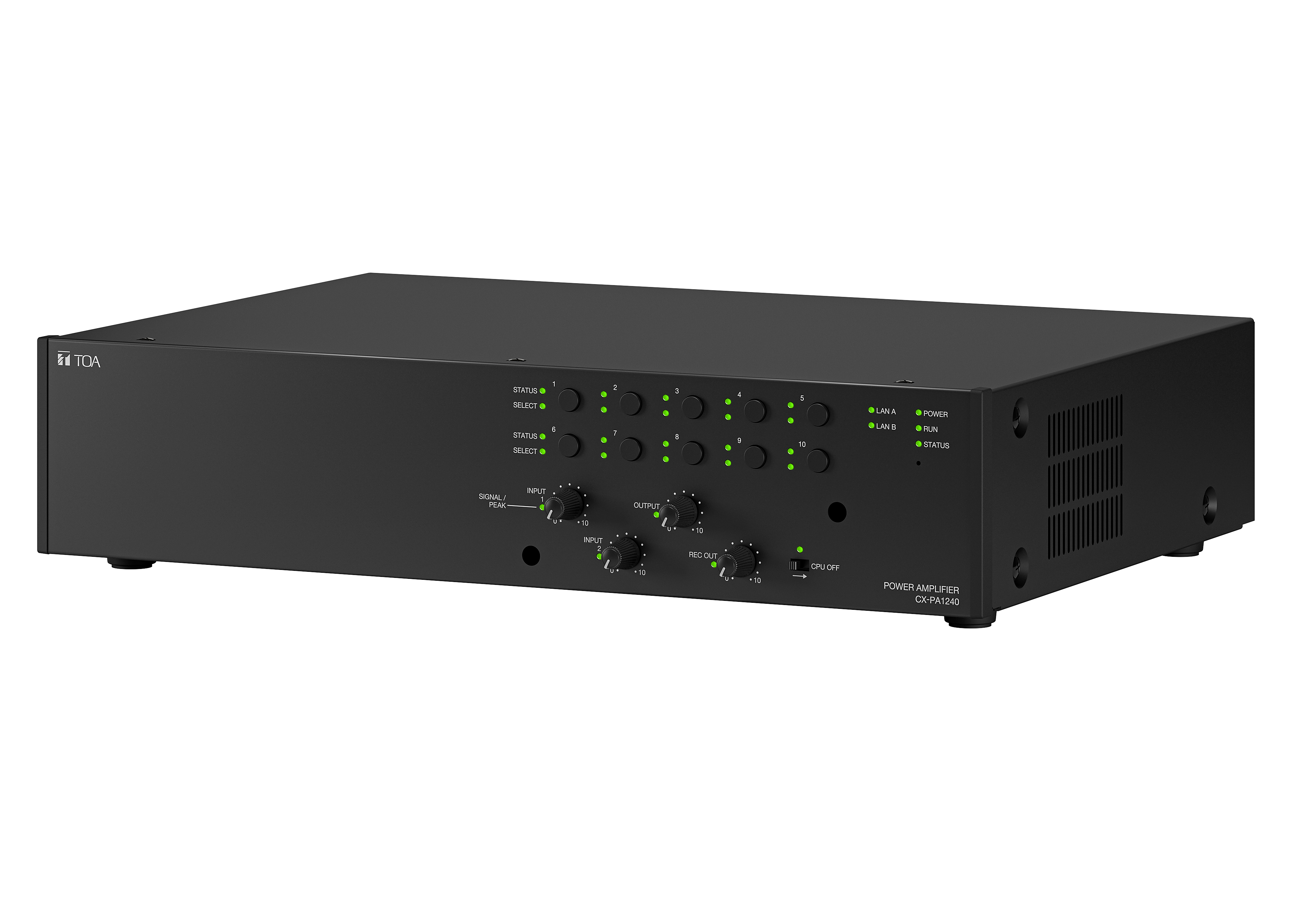

CX-PA1240 Power Amplifier

The CX-PA1240 is a 240W amplifier unit equipped with a built-in 10-zone speaker selector, designed for the CX-1000 series IP communication system. It allows audio broadcasts from each intercom station and audio interface to each speaker zone. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be made. It is equipped with 2 analog inputs, 1 recording output, and 10-zone speaker output which is individually controllable. The input and output volumes can be ad justed using the front panel-mounted volume knobs or by software. The sound quality of the input and output can also be adjusted by software. The CX-PA1240 is equipped with 24 V DC emergency cutoff input function, allowing it to be linked with emergency evacuation broadcast equipment.

It features a built-in ANC function that automatically adjusts the output volume according to the ambient noise when an ANC sensor microphone is connected. Even if the connection to the System manager is disconnected, emergency all-zone broadcasts can be made using the unit's audio input and output. Broadcasts and various functions can be started and stopped using the front panel-mounted direct keys.

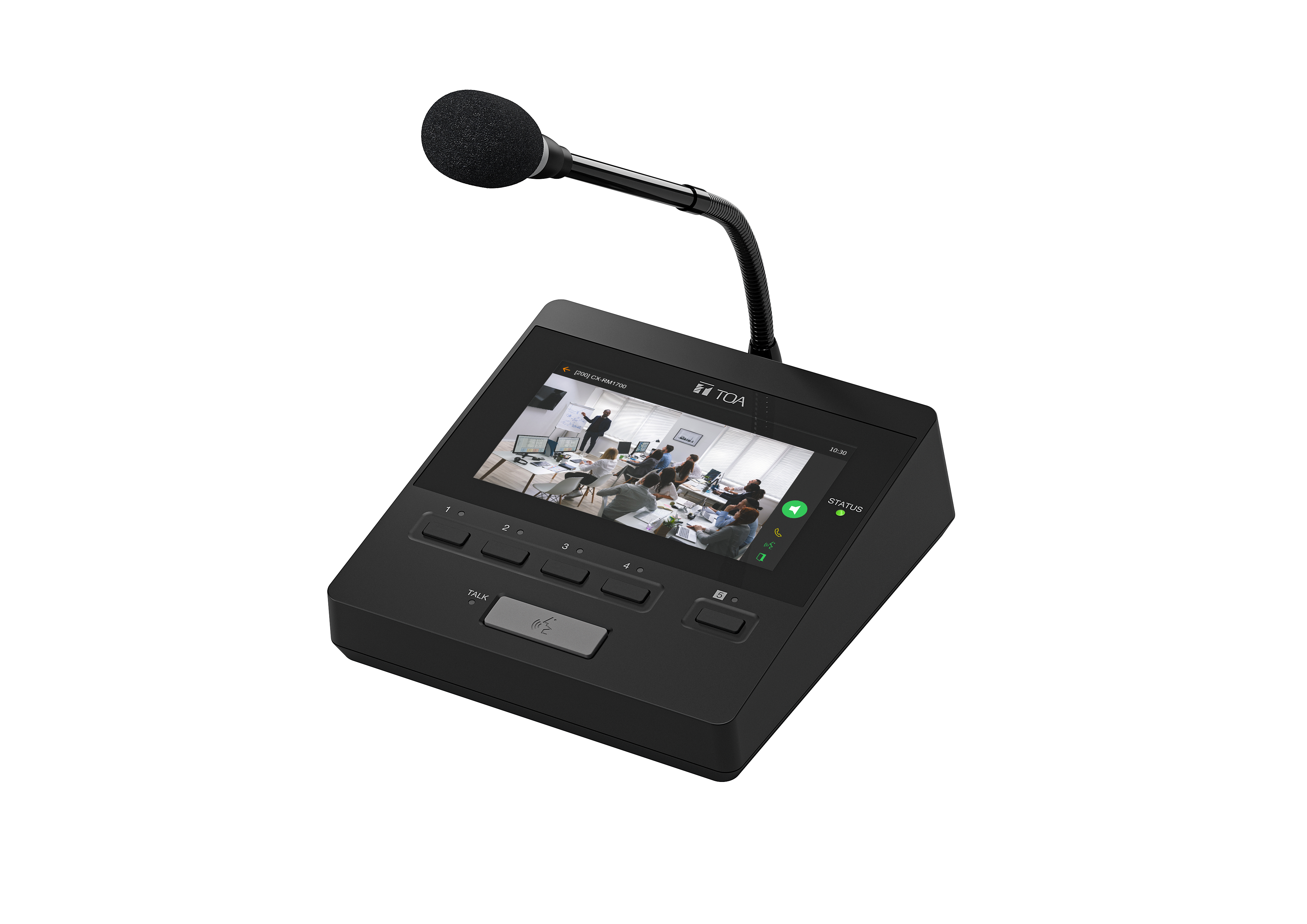

CX-RM1700 Touch Screen Remote Microphone

The CX-RM1700 is a Touch screen type remote microphone designed for the CX-1000 series IP communication system. By simply connecting this remote microphone to a network (LAN or WAN), audio broadcasts can be announced to the intercom stations, audio units, and amplifier units using the microphone or audio source devices connected to the audio input of this remote microphone.

In addition, by registering audio files in the remote microphone's built-in memory, Chime broadcasts can be made with arbitrary content. The intuitive operation is available owing to the Touch screen LCD and the direct keys to which arbitrary functions can be assigned. Power can be supplied from a

PoE-compatible switching hub ( in this case, an optional AC adapter is not required). Images from the general-purpose IP cameras can be displayed.

Note: We do not guarantee the operations of all IP cameras.

CX-SM1000 System Manager

The CX-SM1000 is a System manager designed for the CX-1000 series IP communication system.

It can set up a matrix system in combination with the intercom stations, Audio interface, amplifier units, and touch screen remote microphone of the CX-1000 series, enabling conversations and broadcast controls. Up to 3000 stations can be connected within a system. It is equipped with a Failure detection function and a network redundancy function, allowing you to build a highly reliable system. The CX-SM1000 is equipped with a WEB server, which enables you to configure various settings from a browser. A built-in SD card slot allows for uploading and downloading the system settings and downloading the operation history.

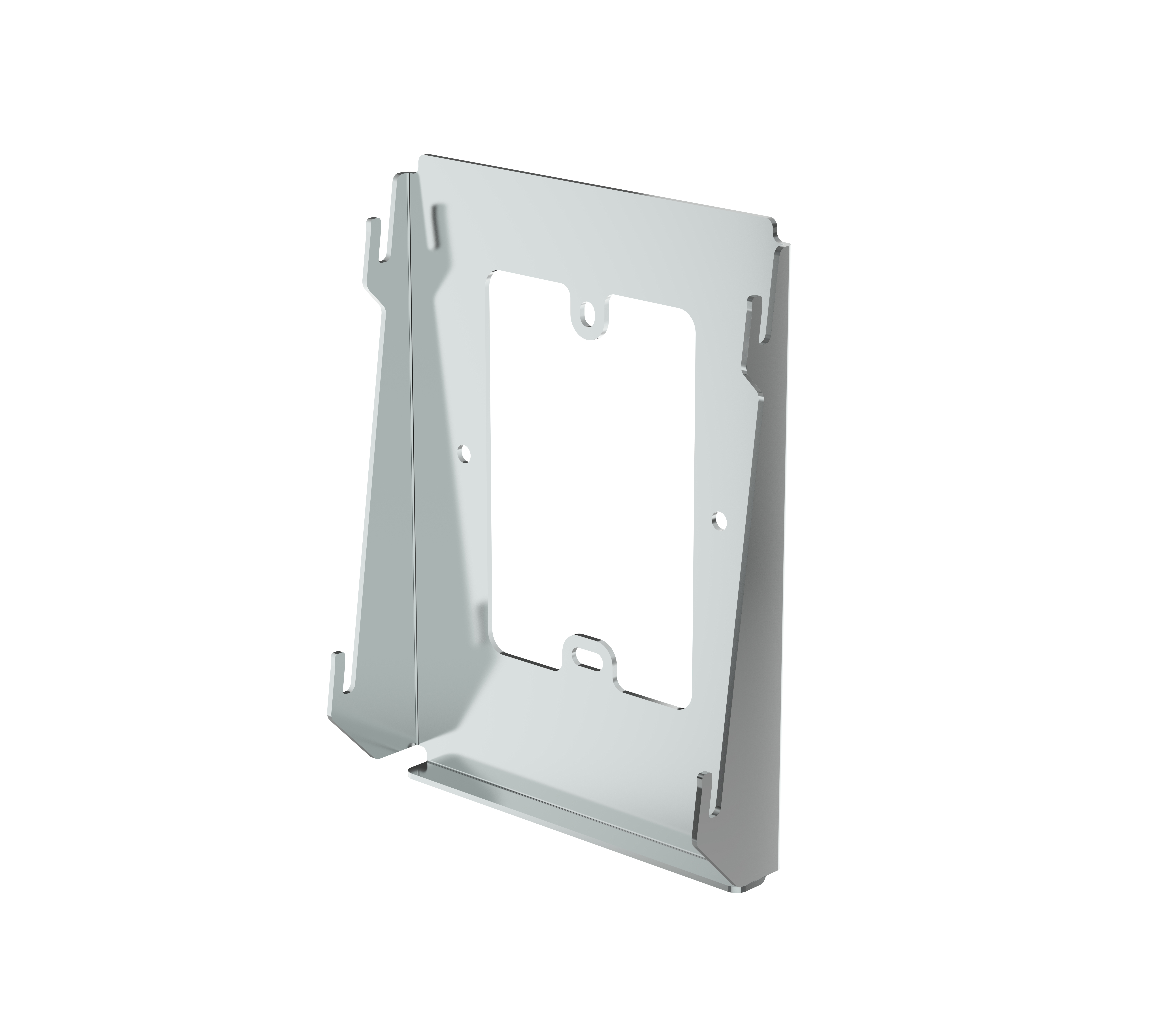

YC-1001 Wall Mounting Bracket

The YC-1001 is a Wall mounting bracket designated specifically for the intercom stations of the CX-1000 series IP communication system.
