Infrared Wireless Microphone System

Infrared Wireless Microphone System

IR-310M Infrared Wireless Microphone

IR-310M Infrared Wireless Microphone

IR-310M

The IR-310M is a lightweight, hands-free infrared wireless microphone. It is designed for use in the school classrooms and eliminates problems with interface or eavesdropping, allowing simultaneous use in adjacent classrooms. It is capable of operating on one of two selectable IR frequencies and two transmitters can work simultaneously. It is also capable of operation with one piece of rechargeable AA Ni-MH battery IR-200BT-2 for continuous operation up to 8 hours.

IR-310BC Battery Charger

IR-310BC Battery Charger

IR-310BC

The IR-310BC is a dedicated battery charger for IR-310M Infrared Wireless Microphone. It employs a quick charging system for one IR-200BT, a nickel metal hydride (Ni-MH) battery to be fully charged within 3 hours.

IR-820SP Infrared Speaker

IR-820SP Infrared Speaker

IR-820SP

The Infrared Wireless Microphone System using this IR-820SP is a PA system designed for use in the school classrooms assuming that their size is about 10 m × 10 m (30 ft × 30 ft). The IR-820SP is a ceiling-mounted powered speaker with the infrared receiver and offers a wide frequency range of high-quality sound output. It features a digital amplifer for the amplification section, and a full-range speaker for the speaker section. Use of the supplied mounting hardware and optional HY-TB1 Tile Bar Bridge permits it to be versatilely mounted to match a wide range of applications and installation locations. This speaker is combined with an infrared wireless microphone and the IR-802T Infrared Wireless Tuner to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

IR-802T Infrared Wireless Tuner

IR-802T Infrared Wireless Tuner

IR-802T

The Infrared Wireless Microphone System using this IR-802T is a PA system designed for use in the school classrooms assuming that their size is about 10 m × 10 m (30 ft × 30 ft). The IR-802T is a 2-channel Infrared Wireless Tuner employing a fixed frequency system with 3 AUX inputs. It is combined with an infrared wireless microphone and an infrared wireless speaker to make up the infrared wireless microphone system. The infrared wireless microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent school classrooms.

IR-200M Infrared Wireless Microphone

IR-200M Infrared Wireless Microphone

IR-200M

The IR-200M is a handheld infrared wireless microphone. It eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms. Since infrared wireless microphone system uses a frequency band that does not interfere with that of the TS-800 and TS-900 series infrared conference system, both systems can be simultaneously installed in the same location.

IR-300M Infrared Wireless Microphone

IR-300M Infrared Wireless Microphone

IR-300M

The IR-300M is a hands-free infrared wireless microphone. It eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms. Since infrared wireless microphone system uses a frequency band that does not interfere with that of the TS-800 and TS-900 series infrared conference system, both systems can be simultaneously installed in the same location.

IR-500R Infrared Wireless Receiver

IR-500R Infrared Wireless Receiver

IR-500R

The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or an electrical box.

IR-510R Infrared Wireless Receiver

IR-510R Infrared Wireless Receiver

IR-510R

The IR-510R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a ceiling.

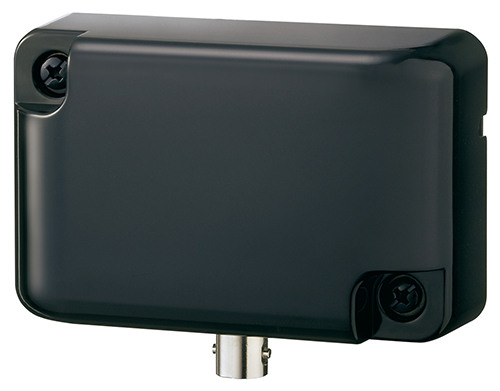

IR-520R Infrared Wireless Receiver

IR-520R Infrared Wireless Receiver

IR-520R

The IR-520R Infrared Wireless Receiver is designed for exclusive use with the IR-702T Infrared Wireless Tuner. It can be mounted to a wall or a microphone stand.

IR-700D Infrared Wireless Distributor

IR-700D Infrared Wireless Distributor

IR-700D

The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system. It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.

IR-702T Infrared Wireless Tuner

IR-702T Infrared Wireless Tuner

IR-702T

The IR-702T is a 2-channel infrared wireless tuner employing a fixed frequency system. This tuner is combined with an infrared wireless microphone and an infrared wireless receiver to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms.

IR-200BC Battery Charger

IR-200BC Battery Charger

IR-200BC

The IR-200BC is a dedicated battery charger for the IR-200M and IR-300M Infrared Wireless Microphones. It employs a quick charging system for nickel metal hydride (Ni-MH) batteries, allowing up to 2 infrared wireless microphones to be fully charged within 3 hours.

IR-200BT-2 Ni-MH Battery

IR-200BT-2 Ni-MH Battery

IR-200BT-2 Y

The IR-200BT-2 (containing 2 pieces) is an AA nickel metal hydride (Ni-MH) rechargeable battery pack designed for exclusive use with the infrared wireless microphones.
